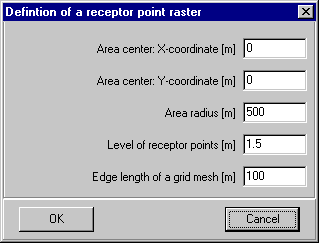

Definition of a receptor point net

Definition of a receptor point net

Area center: X/Y-Coordinates

The center coordinates of a receptor point area are to be set here.

Area radius

The radius of a receptor point area is to be set here. Only areas which are completely inside the circle will be used in the creation of evaluation areas.

Level of receptor points

Height of the receptor points. Standard is 1.5m.

Edge length of a grid mesh

The receptor point area is built up with collectives (evaluation areas), which are arranged in quadratic areas with this edge length.

see Receptor points
