P&K 3782

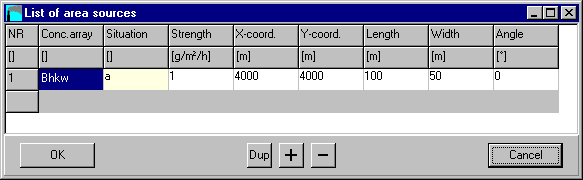

List of area sources

List of area sources

Conc.array

The name of a concentration array, defined beforehand, can be chosen from a pull-down list.

Situation

Set the number or choose the name of a dispersion situation, which is to be assigned to this source .

Strength

The specific mass flux of the source.

X/Y-Coordinates

Set the center coordinates of the source.

Length/Width

Set the extent of the area source in X-direction and Y-direction respectively.

Angle

Set the rotation angle of the area source relative to the coordinate system counter-clockwise in degrees.

Index to Factors (in a special version only)

Taking account of the amplification factors, this input refers to a block in the file which contains the factors to be used. If the number is 0, the factor 1 is used.

see Operations within the tables
