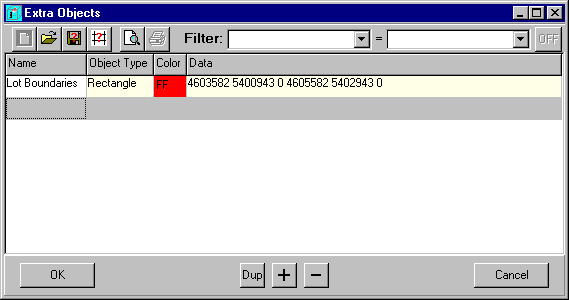

List of Extra Objects

This is a temporary dialog for additional objects in the illustrations.

Name

Free definable descriptor.

Object-Type

Here, Rectangle, Polygon or Cylinder (upright) can be selected.

Color

Color of the object. A color select dialog will be opened on select of this cell.

Data

Dependent on the selected object type, different dialogs for entering below stated data, will be opened on select of this cell.

RECTANGLEx1 y1 z1 x2 y2 z2
POLYGONx0 y0 z0 ........ xn yn zn
CYLINDERx y z Height Diameter

See Operations within the tables
