3D illustrations

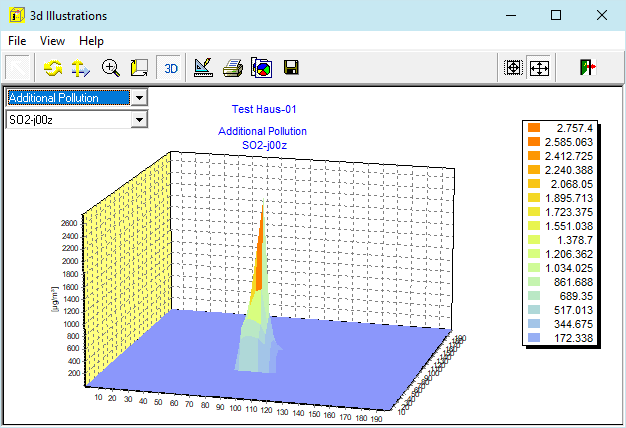

In this form three-dimensional representations over concentration, statistical certainty etc. and other computed components can be produced. In the upper left top the different elements (here SO2-j00z) are selectable. If the selection field is selected, one can walk thru the representations with Curser UP and down Between.

If height layers are available, a selector for this will be made available.

See also: Operations within the Graphics
