Obstacles / Buildings

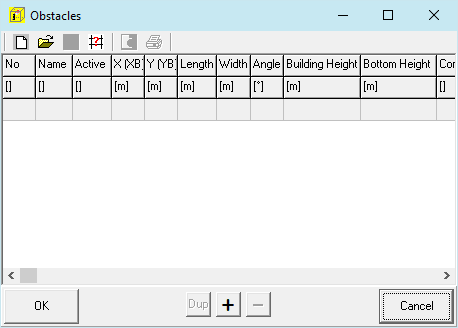

Definition of buildings, which are to be considered in the generation of Wind Fields. The buildings are defined thru a cuboids. The cuboid is defined thru the edge lengths. The coordinates X,Y describe the center of the bottom rectangle and are relative to Gx, Gy (Project Parameter). These elements can be placed also under Graphical Tools for drawing objects.

The form Cylinder is for cylindric objekts (Cooling Towers) which are, according AUSTAL.pdf, inserted into the buildings.

The Bottom Height will be ignored for TALDIA:


See also: Operation within the tables
