P&K 3783 (VDI 3783 part 1+2)

Graphical Course

Form Distance Course

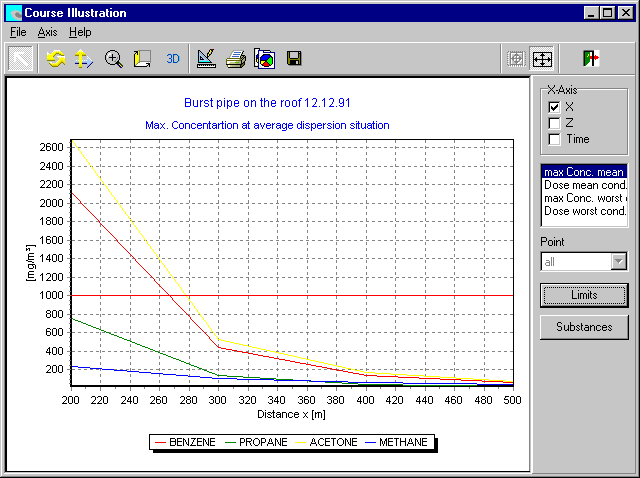

Illustration of the calculated characteristics over the distance from the source or over the time. Form is available after calculation.

X-Axis

Selection of the X-Axis. The distance can be derived from x, z or from both.

Point

Selection of the receptor point for illustration over the time.

Limits

See Limits

Substances

See Substances

See also: Graphic output of the ambient air concentration course and Operations within the graphics
