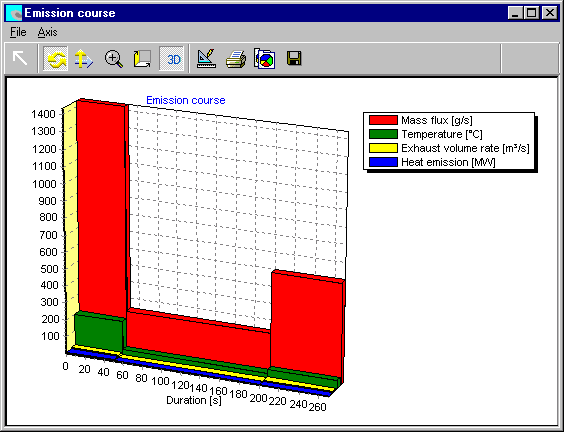

Emission course graphic

Form Emission course

Most of the graphics can be zoomed; therefore a rectangle has to be opened with the mouse from the upper left corner to the lower right corner. To reset the zoom, a rectangle from the lower right corner to the upper left corner has to be opened with the mouse. Also the graphic can be moved; therefore the graphic is to be dragged with the right mouse button pressed.

Some dialogs can also be opened by clicking onto the axis, the legend, the title or double clicking the drawing area.

The button has to be down for all functions, which are activated by clicking into the drawing area.

Graphical illustrations on the screen can be printed with File/Print or the button .

The Export of Images can be done with . Images can also be copied to the clipboard with .

Setup (Layout, Export and Format)

A form in which more graphic parameters can be set. Functions for export and graphics formats are also in this form.

Alterations made in will not be saved automatically. In some illustrations it might be possible to save and load configuration changes under the file menu, but it might cause strange effects, because the configuration might not fit to the current illustration. Series, which are not needed in the current illustration and which are not automatically destroyed can be made inactive. Data are managed in so called Series. The configuration can be saved with or without data. The data are normally replaced with the current ones, despite this, sometimes it might still be important to save the data along with the configuration.

Modifications and settings in other forms or of the calculated data can overwrite made changes in Setup!

It is recommended to set the graphic type to the configuration to be loaded.

MAX

With the button MAX the scale settings are maximized.

ISO

The graphic can be illustrated isometrically by using the button ISO. This has to be repeated after changing the size of the graphic.
