P&K ODOR

Global parameters of characteristic calculation

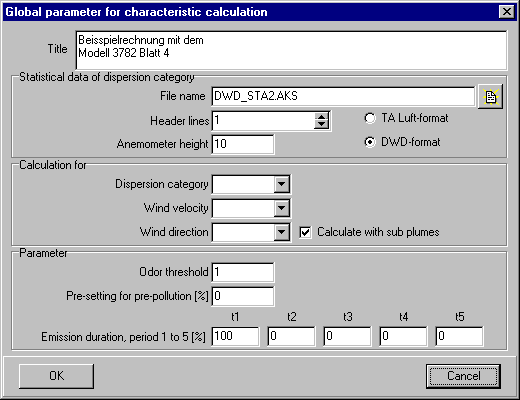

Global parameter form

Title

Any text can be entered here. It will appear on the print-out of the characteristic calculation.

File name

Statistical dispersion categories, which exist as a file with the extension AKS on the path of the hard disc, can either be selected from a list or any name can be entered.

Header lines

The number matrix of the statistical dispersion category can begin with one or more text lines.

Anemometer height

Enter the anemometer height in meters.

TA Luft, DWD-Format

Select one of two available formats for statistical dispersion categories.

Dispersion category

The characteristic calculation can be limited to one dispersion category.

Wind velocity category

The characteristic calculation can be limited to one wind velocity category.

Wind direction category

The characteristic calculation can be limited to one wind direction category.

Sub plumes

Calculate with sub plumes

Odor threshold

The calculation with the Factor-10-Method determines how often the average value (which was increased by a factor (usually ten)) exceeds the odor threshold.

Pre-settings for pre-pollution

If in the collective file none of the pre-pollution values is not equal to zero, this value is to be used in the characteristic calculation.

Emission duration, periods

The emission duration for periods 1 to 5.

see Program desciption 3.2 Periods
