P&K 3781 (VDI 3781 2)

Background Image

Product has been archived / Produkt wurde archiviert

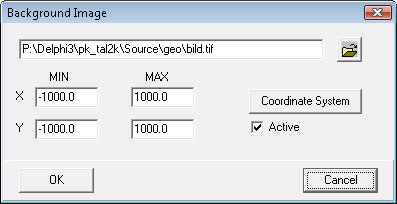

In this form, an image file can be defined as background. Files of the types gif, jpg, jpeg, tif, bmp, emf, wmf and png are usable, but preferably, a scalable format like emf or wmf should be used. The coordinates define the lower left and the upper right corner of the image. For TIFF files, which are accompanied by a coordinate reference file, these are read as well.

Hint: Load image into a graphic program, rotate it, so it becomes horizontally aligned, then crop it to the above coordinates.

Coordinate System here one can transform coordinates. This feature may require an additional installation.
