Stack height according to TA Luft Nomogram

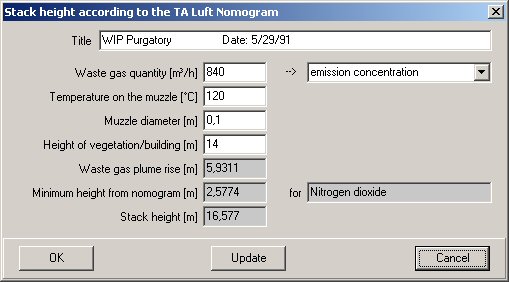

Stack height according to TA Luft nomogram

Title

Any text can be entered here. It will appear in the report of the stack height calculation according to TA Luft.

Waste gas quantity [m3/h]

Exhaust volume rate of the waste gas after deduction of the dampness content in m3/h as parameters of the stack height according to TA Luft. -> select whether emission concentration or the mass flux of the substances is to be adjusted on changes of the waste gas quantity.

Temperature on the muzzle [°C]

Temperature of the waste gas on the stack muzzle in °C as parameters of the stack height according to TA Luft.

Muzzle diameter [m]

Internal diameter of the stack or the equivalent internal diameter of the cross-section area in meters as parameters of the stack height according to TA Luft.

Height of vegetation/building [m]

According to TA Luft the average height of the built-up existing development or, according to a development plan permissible development or the vegetation of the farmland in meters, if more than 5 % of the assessment area is concerned.

Update

The display of the calculated results can be updated here after modifying the parameters.

Waste gas plume rise [m]

Display of the calculated value.

Minimum height from nomogram [m]

Display of the calculated value.

Stack height [m]

Display of the calculated value.

For

Display of the relevant material.
